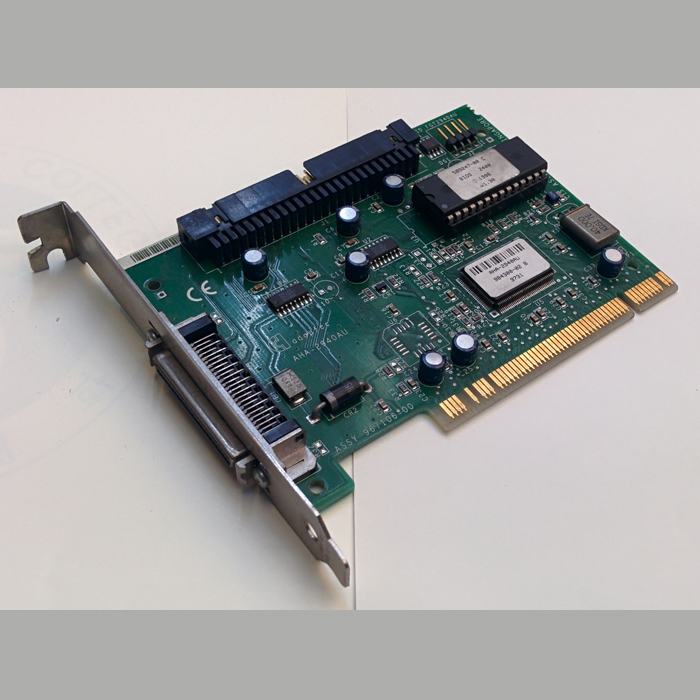

• AHA-2940 Ultra SCSI Card
• EZ-SCSI 5.0 software (for use only with Windows 95, 98, ME, or Windows NT 4.0 operating systems)
• 50-pin internal SCSI cable
• Quick installation guide
• Reference guide
• Registration card

Supported Protocols

SCSI-1
SCSI-2
SCSI-3
UltraSCSI

Advanced SCSI Features

Advanced SCSI Programming Interface (ASPI) compliant
multi-threaded I/O
scatter/gather
tagged queuing
disconnect/reconnect
synchronous and asynchronous Fast and Wide
bootable from attached disks

Hard Disk Capacity

Extended translation scheme supports up to eight (8) Gbytes per disk

Electrical Drivers

Single-ended, active, programmable via SCSISelect configuration utility

Board Dimensions

4.75" x 3.5"

Operating Characteristics

32 F to 131 F (0 C to 55 C) 10% to 90% Relative Humidity, non condensing

Storage Characteristics

-67 F to 185 F (-55 C to 85 C)

Regulatory Certification

FCC, UL, C-tick, CE, VCC

Mean Time Before Failure (MTBF)

544,264 hours at 40 degrees C
