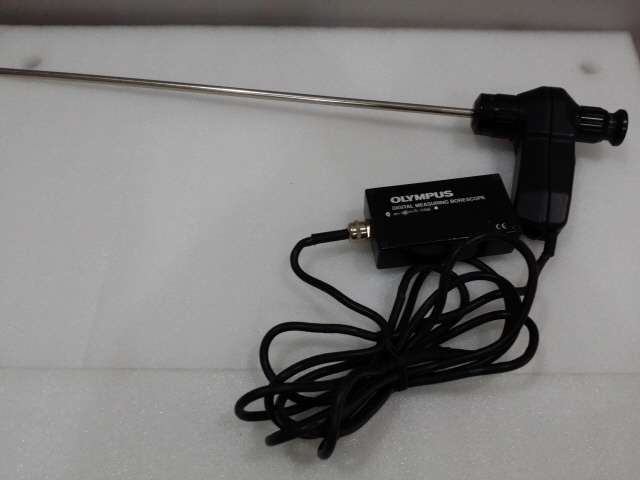

- [중고] 올림푸스 산업용 관측 내시경 / Olympus Digital Measuring Borescope / NSN 6650-01-414-6701 / r080-045-050sw110-20m
상세 정보를 확대해 보실 수 있습니다
Part Number : R080-045-050SW110-20M
NSN : 6650-01-414-6701
NIIN : 014146701
Item Name : Borescope
Characteristics (Decoded)
| MRC | Requirements Statement | Clear Text Reply |
|---|---|---|
| FEAT | SPECIAL FEATURES | FIELD OF VIEW 20 DEG.; FOCUSING ADUSTABLE 0.4 DEG. TO INFINITY; DIRECTION OF VIEW 50 DEG. TO 110 DEG. SWING RANGE; C/O DBM CAMERA SET COMPACT CCD CAMERA W/INTEGRAL EYEPIECE ADAPTER S-VIDEO/PWR CABLE,AC ADAPTER; MEASUREMENT JIG SCALE W/MOUNTING BRACKET,TO VERIFYACCURACY; BBM CABLE SET CONNECTS BORESSCOPE TO VIDEO ANALYZER; MULTI PURPOSESLEEVE PLASTIC HOLDER FOR BORESCOPE; MMPS RIGID SUPPORT L BRACKET,MOUNTS MPSTO MAGIC SUPPORT ARM; CASE MOLDED PLASTIC CASE |
| BLPK | OPTICAL DEVICE TYPE | LENS |
| BLPR | MAGNIFICATION | 1.0X NOMINAL |
| AQFH | BRACKET | PROVIDED |
| BLPM | OBJECTIVE APERTURE DIAMETER | 8.0 MILLIMETERS NOMINAL |
| BLPS | STRAIGHT TYPE OVERALL LENGTH | 450.0 MILLIMETERS NOMINAL |
| BLPW | SCALE MARKINGS | NOT PROVIDED |
| BCTD | FOCUSING TYPE | ADJUSTABLE |
| AFJU | CARRYING CASE | PROVIDED |
| BLPQ | MAGNIFICATION TYPE | FIXED |
